Detailed Explanation of Silicon-Carbon Anode Material Technology and Process

Silicon-carbon anodes are one of the core materials for next-generation high-energy-density lithium batteries, aiming to overcome the bottleneck of low theoretical specific capacity (372 mAh/g) of traditional graphite anodes and achieve a leap in battery energy density.

I. Why choose silicon? Why is composite bonding necessary?

1. Silicon’s huge advantages

Ultra-high theoretical specific capacity: Pure silicon boasts a theoretical specific capacity of ~4200 mAh/g, more than 10 times that of graphite.

Suitable lithium intercalation potential: Slightly higher than graphite, making it safer and less prone to lithium plating.

Abundant reserves are environmentally friendly.

2. The Achilles’ heel of silicon

Particle pulverization: Active material detaches from the current collector.

The solid electrolyte interface film is constantly ruptured and regenerated: continuously consuming electrolyte and lithium source, resulting in low coulombic efficiency and rapid capacity decay.

Massive volume expansion: During lithium intercalation, the volume of silicon can expand by more than 300%. This leads to:

Poor electrical conductivity: not as good as graphite

3. The role of carbon

Buffer matrix: Flexible carbon materials (such as amorphous carbon and graphene) can accommodate volume changes in silicon and prevent structural collapse.

Conductive network: Improves the overall conductivity of composite materials.

Stabilized SEI film: The SEI film formed on the carbon surface is more stable and can limit direct and excessive contact between silicon and electrolyte.

Therefore, silicon-carbon composite technology is the inevitable technical path to balance high capacity and long cycle life.

II. Mainstream Silicon-Carbon Composite Process Routes

The core idea is to design silicon-carbon composite structures at the nanoscale to alleviate mechanical stress. The following are some mainstream processes:

1. Cladding structure

Carbon shell: provides conductive channels, restricts the outward spread of silicon volume expansion, and stabilizes the silicon-electrolyte interface.

Core: It can be a single particle or a secondary aggregate of silicon and carbon.

Process: Using silicon particles (nano-silicon, sub-silicon oxide, etc.) as the core, a carbon layer is uniformly coated on their surface (through methods such as vapor deposition, polymer pyrolysis, and liquid phase encapsulation).

2. Embedded/Distributed Structure

The carbon matrix acts as a continuous buffer phase, isolating silicon particles from each other, preventing agglomeration, and absorbing expansion stress.

Similar to “raisins embedded in bread”.

Process: Nanoscale silicon particles (typically <100nm) are uniformly dispersed in a carbon matrix (such as amorphous carbon, graphite, or hard carbon). The carbon matrix can be formed by carbonizing a mixture of precursors (such as resin, pitch) and silicon.

3.Porous/Skeleton Structure

The porous carbon framework provides abundant pores and a large internal space specifically designed to accommodate silicon expansion.

Stable structure and excellent ion/electron transport pathway

Process: First, porous carbon materials (such as carbon nanotubes, graphene aerogels, and porous activated carbon) are prepared, and then silicon is deposited (such as by chemical vapor deposition, CVD) or infiltrated into their pores.

4. B onded type (silicon suboxide – SiOₓ-C, currently the mainstream in industrialization)

Its cycle performance is better than that of pure silicon, but its low initial efficiency is a drawback (requiring pre-lithiation compensation).

Material: The core component is silicon suboxide. Its lithium intercalation products include active silicon nanocrystals and inert lithium silicate/lithium oxide, naturally forming a “buffer matrix”.

Process: Silica particles are mixed with a carbon source (asphalt, resin, etc.), granulated, and carbonized to form secondary particles. The carbon layer both coats the primary particles and binds the entire secondary particle.

III. Key Preparation Process Technologies

1. Chemical vapor deposition

Applications: Growing a uniform carbon coating layer on the surface of silicon particles, or depositing nano-silicon on a porous framework.

Key: Controlling temperature, gas flow rate (e.g., methane, ethylene), and time to obtain carbon layers of ideal thickness and graphitization degree.

2. High-energy mechanical ball mill

Application: Physically mixing and refining micron-sized silicon with carbon materials (graphite, carbon black) to achieve preliminary composite material processing.

Key: Control the ball-milling time and atmosphere to avoid introducing excessive impurities or excessively damaging the structure.

3. Spray drying/pyrolysis

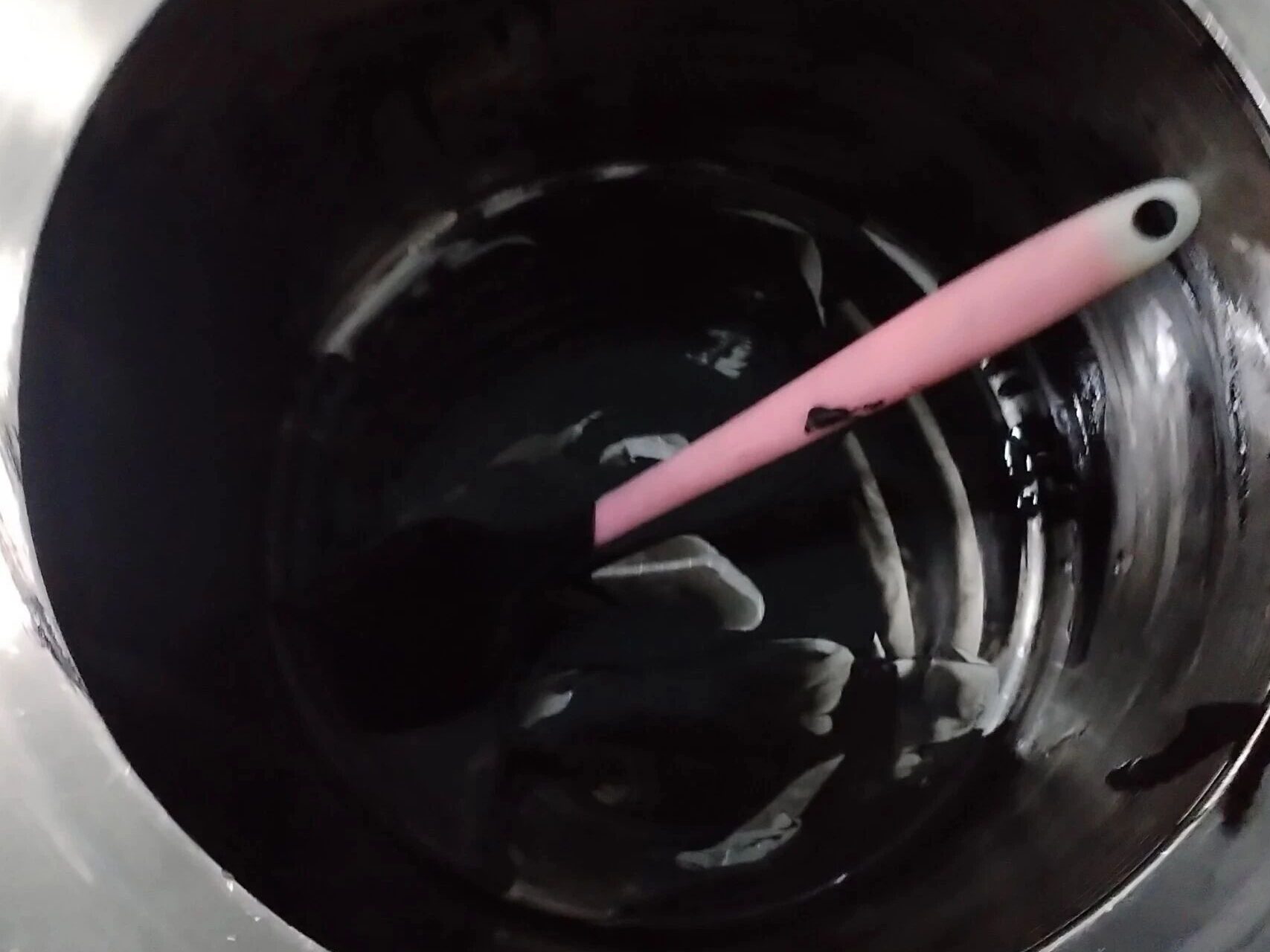

Application: Spray granulation of silicon nanoparticles with carbon precursors (such as sucrose, polymers) in solution/suspension, followed by carbonization, to form uniform silicon-carbon secondary microspheres.

Key factors: precursor selection, drying, and control of the pyrolysis process.

4. Pre-lithiation technology (and its supporting processes are crucial).

Objective: To compensate for irreversible lithium loss caused by SEI formation during the first charge-discharge cycle of silicon-carbon materials (especially silicon suboxide) and improve the first coulombic efficiency.

Methods include negative electrode pre-lithiation (contact lithium foil, stabilized lithium powder SLMP) and positive electrode lithium replenishment (lithium-rich compounds). These are key supporting processes for the commercialization of silicon-carbon negative electrodes.

IV. Technological Challenges and Development Trends

1. Current challenges:

High cost: The preparation and composite processes of nano-silicon and silicon suboxide are complex.

Increased volumetric energy density: Although the mass energy density is high, silicon-carbon materials have low density, requiring space to be reserved for expansion, and the battery design needs to be optimized.

Electrolyte matching: It is necessary to develop suitable electrolyte additives to form a more stable SEI film.

2. Future trends:

Refined Materials Design: From Microstructural Design to Precise Control at the Atomic/Molecular Level

Process Innovation and Cost Reduction: Developing Large-Scale, Low-Cost Nanoscale Silicon and Composite Processes

Full battery system integration: collaborative development with high-nickel cathodes, novel electrolytes, and solid electrolytes.

Gradually increase silicon content: from the current 5%-10% to higher silicon content (>20%), while maintaining cycle stability.

In summary, the core technology of silicon-carbon anodes lies in “nano-sizing + composite + structuring.” Through ingenious material design and precise fabrication processes, silicon’s high capacity is utilized while carbon is used to “constrain” and “buffer” its expansion. Currently, the silicon suboxide-carbon route has achieved large-scale commercialization, while the nano-silicon-carbon composite route represents a key direction for future higher energy density batteries. As the technology matures and costs decrease, silicon-carbon anodes will gradually become the standard for high-end lithium batteries.
